| Quantity: | |
|---|---|
Full-automatic control, Chinese-English graphical interface,Windows 10 operating system.
Can choose C02 (UV/FAYB)laser marking system,XY precise platform,CCD+MARK precise position.
Accuracy of marking position within 0.02mm
Can mark Chinese,English,numbers,icons,serial numbers,Logo.bar cords,QR cords etc
Can access to Shop Floor/MES systems, support Gerber DXF and other documents import
Support marking various types of PCB,FPC, metal shield and other different material surface
Visualization operation in the whole process with the re-judged function.

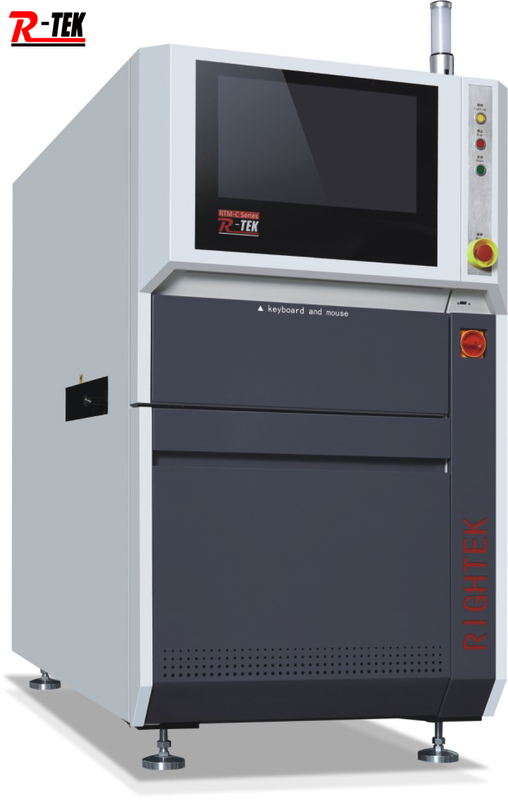

| Product Name | UV laser marking machine |
| Model No | RTM-U450 |
| Laser type | UV |
Laser wavelength | 355nm |
| Laser power | 5W |
Laser cooling method | Mandatory Water cooling |
| Laser electricity | 0.03mm |
| Way to work | LASER / LASER move XY / XY axis move |
The basic specifications | |
Repeat positioning accuracy | ±0.02mm |
Operational height | 900 ± 20mm(adjustable) |
| Size | 1*1mm |
| Positioning system | CCD + Mark positioning |
| Control System | PC + Shaft Card + Servo |
| Barcode detection system | CCD online reading detection |
| Maximum PCB size | 50*50-450*450mm |
| PCB Permissible deformation of PCB | <3mm |
| PCB thickness | 0.5-4mm |
| PCB PCB Pass height | UP:35mm DOWN: 15mm |
The thin plate Anti-tilt system | Yes |
| Track transmission speed | 0-3000mm |
| Direction of track transmission | Left-Right RightLeft (optional) |
| Built-in rillover | No |
| Track width adjustment | Automatic adjustment |
| Engraving object/Type | character /bar code /QRcode /graphic data |
| Smoke treatment mode | Smoke purification system |
| Softeare | Self-developed, more variable service |
| Software interface | Chinese or English interface |
| Poka-yoke function | Yes |
| Defective board recognition function | Yes |
| Bar code data source | Obtain from MES, or generate automatically |
| System connection function | Access to smart management systems such as Shopflor, MES, IMS, etc. |
| Bar code level analysis | Support |
| Engraving angle | 0-360° |
Company Profile
Guangdong R-TEK Intelligent Technology Co. Ltd.-as a professional manufacturer of SMT intelligent electronic equipment,which has been committed to providing advanced products and comprehensive quality services for the global electronics and related industries. R-TEK Intelligent has won a good reputation and high market share in the industry. R-TEK Intelligent is a company specializing in the production and service of SMT smart manufacturing,which has more than 10 years' industry experience. It is mainly used in online marking of PCB circuit boards in the SMT industry, cutting of FPC soft boards, and automatic marking in various other industries. Our products include fully automatic PCB online CO2 laser marking machine, fiber laser marking machine, UV laser marking machine, FPC laser cutting machine, and other types of laser application products. Right-TEK Intelligent has won the market recognition with our hard work and great efforts.
Under the guidance of professional and refined business philosophy, Right-TEK team is constantly innovating with a spirit of constant focus and continuous improvement. In order to meet the requirements of multifunctional, high precision and low energy consumption process, we have developed a flexible response mechanism and established a targeted design concept.
Our goal: multifunctional-high precision-low energy consumption!
Our mission: Service comes first, win-win cooperation, steady development!
After-Sales service:
Technical support
# From the purchase date, one year free warranty, lifelong maintenance
# Provide technical update and technical service at any time
# Software system life - long free upgrade, to ensure the latest version of the software and perfect functions
# Provide technical training according to customer needs
Service support
# Since the date of purchase, the customer has become a lifetime member of our company and enjoys the all-day waiting service
# Make phone calls and on-site visits to customers from time to time, communicate with customers and improve related problems in a timely manner
# Provide door-to-door service, one - on - one designated service policy
Advantage, Why choose us:
1. R-TEK specializes in Laser Marking Machines.we are Self-branded famous manufacture around the world
2. Self developed and owned software, Company industry experience,15 engineers in our R-TEK
3. 2000 sets production capability per year
4. CE,ISO,TUV certified company
5. We have many years of SMT sales, installation and after-sales service experience.
6. We have exported laser markers in Vietnam, Mexico,Turkey,Spain,Saudi Aribia,Estonia,India and other countries. Many of them are new customers starting from scratch.
7. We assist customers to train professional technicians and provide technical support at any time.
Customer Site:
Honor Wall
R-TEK group
------------FAQ----------------------------------------------------
Q: What we can do for you?
A: R-Tek specialize in Laser Marking Machines,professional Technical Support and Service.
Q:Are you a trade company or a manufacturer?
A: OEM & ODM service are available.
Q: What is your delivery date?
A: The delivery date is about 30 days upon receipt of payment.
