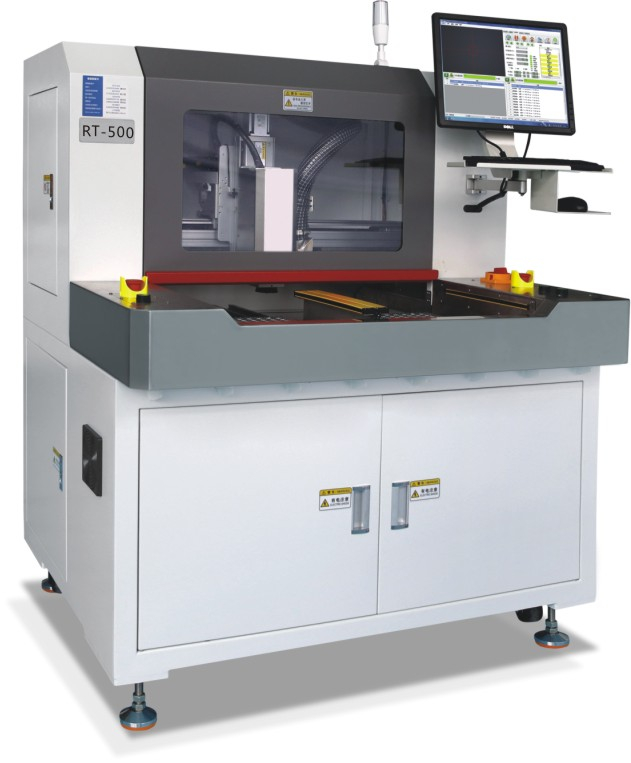

Visible Cutting Machine Equipped with High-speed Spindle

Double worktable movement, can simultaneously perform sub-board cutting and circuit board placement, equipped with high-speed CCD visual automatic correction system, large-spoke to improve cutting accuracy and operation efficiency, using high-speed spindle as PCB cutting! sub-board, small division stress, high precision , And suitable for any shape of circuit board, Windows operating system, safe and stable, easy to learn and use. It is suitable for industries such as communications, medical equipment, automotive electronics and 3C electronics.
Availability:
Quantity:
  • RT-RS500L
  • R-TEK

Double worktable movement, can simultaneously perform sub-board cutting and circuit board placement, equipped with high-speed CCD visual automatic correction system, large-spoke to improve cutting accuracy and operation efficiency, using high-speed spindle as PCB cutting! sub-board, small division stress, high precision , And suitable for any shape of circuit board, Windows operating system, safe and stable, easy to learn and use. It is suitable for industries such as communications, medical equipment, automotive electronics and 3C electronics.

Product Features

High precision

CCD automatically recognizes the mark point location and compensation to ensure the high precision of cutting.

Exquisite visual system, improve the efficiency, convenience and stability of programming.

Double station platform is driven by servo screw rod to ensure higher precision of equipment

High efficiency

Double station table, can execute PCBA board splitting and changing at the same time, reduct the waiting time of PCBA placement.

The double station platform is driven by servo screw rod, which ensures higher equipment speed, smaller stress of board divider and better stability and durability.

Double position and double spindle, increase output by 80% (optional).

High quality

Anti static brushtype_dustcpllection device,^ustcollection rate increased by 90% and high cleanliness.

PCBA cutting stress < 200 y e , the cutting surface is flat and smooth.



RT-RS500L

Effective cutting size
X350*Y550mm

Cutting function
Line, L-shaped, U-shaped, circular, arc, special-shaped, etc.

Processing table
double countertops

Machine repeat accuracy
+0.01 mm

Cutting accuracy
+0.02mm

Maximum movement speed
XY 1 000mm/s,Z800mm/s

Maximum travel
X:750 Y:650 Z: 100mm
Spindle speed MAX 60.000rpm(RASEMINSK)

Change mode of milling cutter
manual
Cutting speed 0~100mm/s

Knife break detection
no

Operation interface
Windows 10

Program teaching method
CCD

Program backup
USB

Control mode
PC®
XYZ
XYZ axis drive
Ac

Applicable milling cutter size
©00.5- 3.0mm

Power specifications
AC220V/380V 50/60HZ 2KW

Cutting machine size
1200(W)*1200(D)*1450(H)

Weight of cutting machine
580KG

Power of dust collector
3HP

Size of dust collector
613(M)x700(D)x1600(H)mm

Power specification of dust collector
AC220V/380V 50/60HZ(34)

Weight of dust collector
120KG

Size of dust collector
600mm*470mm* 730mm
690mm*650mm*1710mm
