Oversized Top And Bottom Fiber Laser Marking Machine

  • RTM-F1000TB
  • R-TEK

Automatic control, PC + QC software control, Windows 10 operating system.
Optional configuration of C02 /fayb /Gr / UV laser marking system, with XY precision positioning, CCD + mark precise positioning. The accuracy of I marking position is within 0.02mm.
It can print Chinese characters, English, numbers, charts, serial numbers.LOGO, bar code, two-dimensional code, etc.
You can access the shopfloor / MES system.
Support Geber, DXF and other document import.
Support printing various types of PCB, FPC, metal shield cover and other, different material surface.
With high quality, high efficiency, high stability, no production consumables.

Product Name Oversized Top And Bottom Laser Marking Machine
Model No.

Laser type FIBER

Laser wavelength
Laser power 20W

Laser cooling method

Mandatory Air Conditioning

Laser electricity

Way to work LASER / laser Move

The basic specifications

Repeat positioning accuracy
Operational height 900 ± 20mm(adjustable)
Size 1.5*1.5mm

Positioning system
CCD+mar / CCD + Mark positioning
Control System PC++ / PC + Shaft Card + Servo

Barcode detection system
CCD / CCD online reading detection
PC B Maximum PCB size 100*100-L1000*W610mm
Permissible deformation of PCB
PCB thickness
PCB Pass height

Track transmission speed

Direction of track transmission
Left-Right Right->Left (optional)

Track width adjustment
Automatic adjustment
Engraving object/Type
character /bar code /QRcode /graphic data

Smoke treatment mode
Smoke purification system
/Softeare Self-developed, more variable service

Software interface Chinese or English interface

Poka-yoke function

Defective board recognition function

Bar code data source
Obtain from MES, or generate automatically

System connection function
Shopfloor,MESs IMS/ Access to smart management systems such as Shopflor, MES, IMS, etc.
Bar code level analysis Support

Engraving angle
Input voltage AC220V/7A 50Hz

Pneumatic supply
5-7Kgf/cmz  0.5-0.7MPa

Environmental requirement
0-40P 35-85%RH

Equipment power
(**mm) Size of the machine(Long*width*high) 1800*2150*1650

Equipment weight


Company Profile
Guangdong R-TEK Intelligent Technology Co. Ltd.-as a professional manufacturer of SMT intelligent electronic equipment,which has been committed to providing advanced products and comprehensive quality services for the global electronics and related industries. R-TEK Intelligent has won a good reputation and high market share in the industry. R-TEK Intelligent is a company specializing in the production and service of SMT smart manufacturing,which has more than 10 years' industry experience. It is mainly used in online marking of PCB circuit boards in the SMT industry, cutting of FPC soft boards, and automatic marking in various other industries. Our products include fully automatic PCB online CO2 laser marking machine, fiber laser marking machine, UV laser marking machine, FPC laser cutting machine, and other types of laser application products. Right-TEK Intelligent has won the market recognition with our hard work and great efforts.

Under the guidance of professional and refined business philosophy, Right-TEK team is constantly innovating with a spirit of constant focus and continuous improvement. In order to meet the requirements of multifunctional, high precision and low energy consumption process, we have developed a flexible response mechanism and established a targeted design concept.
Our goal: multifunctional-high precision-low energy consumption!
Our mission: Service comes first, win-win cooperation, steady development!
SMT Online Laser Marking Machine
After-Sales service:

Technical support
# From the purchase date, one year free warranty, lifelong maintenance
# Provide technical update and technical service at any time
# Software system life - long free upgrade, to ensure the latest version of the software and perfect functions
# Provide technical training according to customer needs
Service support
# Since the date of purchase, the customer has become a lifetime member of  our company and enjoys the all-day waiting service
# Make phone calls and on-site visits to customers from time to time, communicate with customers and improve related problems in a timely manner
# Provide door-to-door service, one - on - one designated service policy

Advantage, Why choose us:

1. R-TEK specializes in Laser Marking Machines.we are Self-branded famous manufacture around the world
2. Self developed and owned software, Company industry experience,15 engineers in our R-TEK
3. 2000 sets production capability per year
4. CE,ISO,TUV certified company
5. We have many years of SMT sales, installation and after-sales service experience.
6. We have exported laser markers in Vietnam, Mexico,Turkey,Spain,Saudi Aribia,Estonia,India and other countries. Many of them are new customers starting from scratch.
7. We assist customers to train professional technicians and provide technical support at any time.

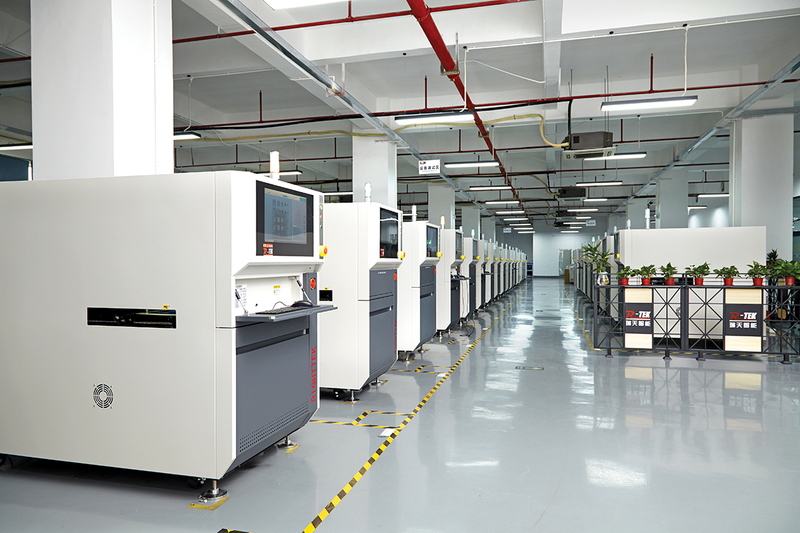

Customer Site:
