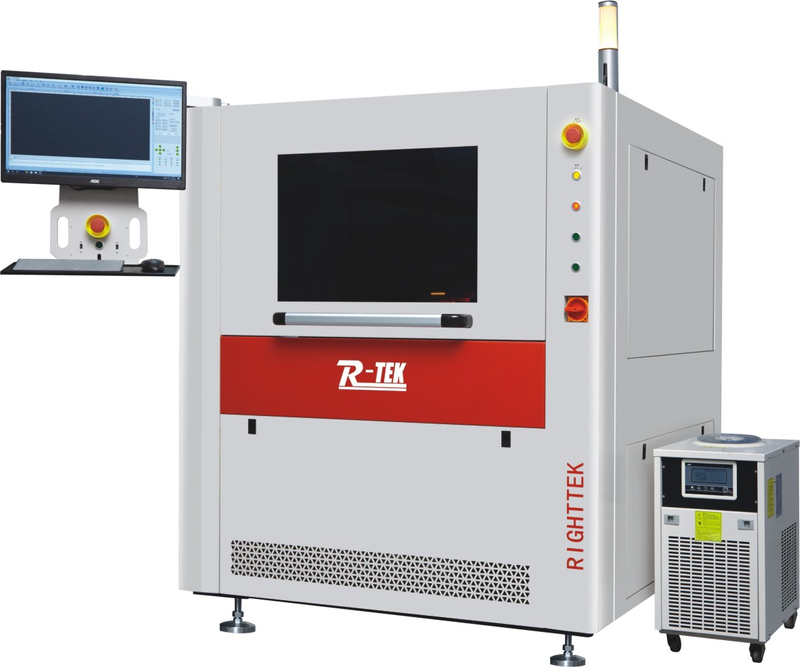

Laser Cutter Machine Specially Designed for FPC And PCB Processing

Fully automatic positioning: using high-precision CCD automatic positioning, focusing, so that positioning fast and accurate, high precision, no manual intervention, simple operation, to achieve the same type of one key mode.
  • RTC-U500
  • R-TEK

Automatic control, PC + QC software control, Windows 10 operating system.

It can be integrated with the production line: the gantry structure and flight light path are designed to facilitate access to the production line. According to the production requirements, the special loading and unloading and in-line system can be equipped to realize the full automation of production and greatly improve the production efficiency. It is specially designed for FPC and PCB processing.

Fast and high precision: high precision and low drift galvanometer combined with fast coreless linear motor system platform can keep high precision of micron level while cutting rapidly.

Fully automatic positioning: using high-precision CCD automatic positioning, focusing, so that positioning fast and accurate, high precision, no manual intervention, simple operation, to achieve the same type of one key mode.


Host specifications

Host size
L1360*W1370*H 1560mm

The weight of the main engine is about

3.5KW/220VAC, 50Hz
Host power supply Power: 3.5kw/power supply: single phase 220 VAC, 50 Hz

Main engine air source
5-7Kgf/cm20.5-0.7MPa/5-7kgf / cm2 or 0.5-0.7mpa

Working height of assembly line
900 ± 20mm adjustable

Lens height focus adjustment
Manual adjustment range: 10 mm

Flow channel width adjustment method
CNC automaticadjustment

Specification of smoking pipe
2 inches

Processing format
460 * 460mm (single platform)
Slit width 20 Plus or minus 5um

Material thickness
< 1 mm (depending on material)

Platform positioning accuracy
Plus or minus 3um

Mechanism repetition accuracy
Plus or minus 3um

AShopfloor. MES,IMS
System access It can be used in shopfloor, MES, IMS and other intelligent management systems
Types of laser UV laser, wavelength 355nm
Laser power 10W~ 15W (optional)

Laser spot diameter
20 Plus or minus 5um

Scanning speed
1 -900mm/s
Location Automatic positioning

Automatic compensation for fluctuation

Galvanometer scanning area

Necessary hardware and software
PCLASER SCAM / Including PC and laser Scam software
Positioning system CCD + mark positioning

X axis 460mm / Y460mm / Y axis 460mm
Control system PC + shaft clamp + linear motor

Computer operating system
Simplified Chinese version of Windows 10

Cutting software

Computer supported network type

Dust extraction system
Laser smoke purifier (standard)
